Core Drilling in Coatesville for plumbing and electrical penetrations in walls, floors, and ceilings
Drilling Clean Holes Through Concrete and Masonry
Elite Concrete Cutting LLC provides core drilling services for contractors, facility managers, and property owners in Coatesville who need to create circular openings in concrete or masonry structures. When you need to run new plumbing through a basement floor, install ductwork through a commercial ceiling, or route electrical conduit through a load-bearing wall, core drilling produces clean, precise holes without fracturing the surrounding material. This method is used in both new construction and renovation projects where penetrations must meet exact specifications for size and location.

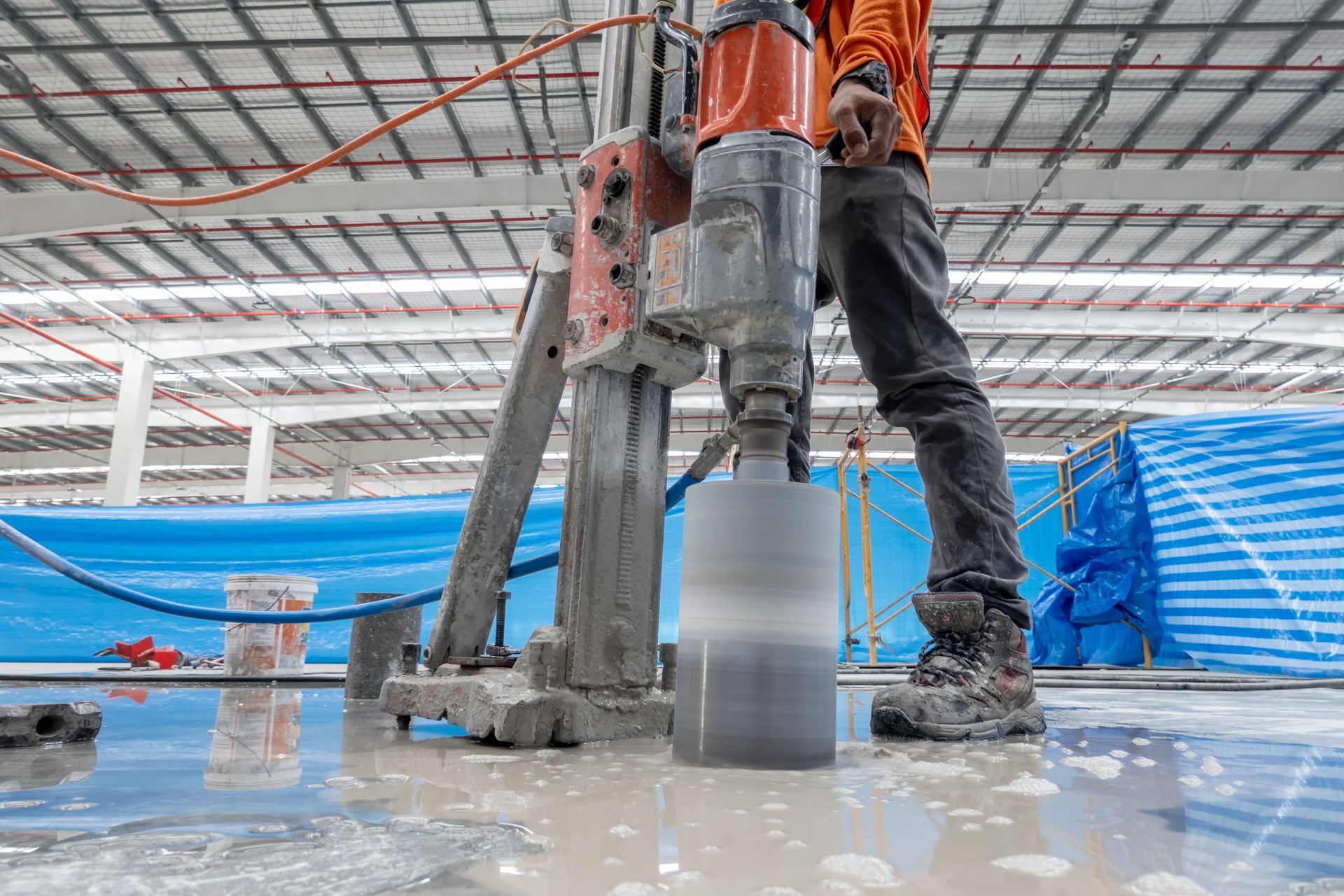

Core drilling uses a hollow cylindrical bit embedded with diamond segments that rotates under pressure to cut a circular core from the concrete. The bit is mounted to a drill rig that can be handheld for smaller holes or anchored to the surface for larger diameters and deeper penetrations. Water flows through the bit during drilling to cool the diamonds, flush out debris, and prevent dust from filling the workspace. The core that is removed remains intact and is extracted from the hole after the drill completes its pass.
If your project requires holes for utilities or mechanical systems, contact Elite Concrete Cutting LLC to confirm the diameter, depth, and angle before drilling begins.
How Core Drilling Maintains Structural Integrity
Your project starts with marking the exact location of each hole on the surface, then scanning the area to identify any embedded rebar, conduit, or post-tensioning cables that may interfere with the drilling path. Once the location is confirmed, the drill rig is positioned and secured, and the bit is aligned to the desired angle, which may be vertical, horizontal, or somewhere in between depending on the application. The drill motor engages and the bit advances slowly into the material, cutting a smooth-walled hole that matches the diameter of the bit.
After drilling is complete, you will see a round hole with smooth edges and no radial cracks extending into the surrounding concrete. The hole is ready for pipe installation, conduit placement, or any other use without additional grinding or patching of the perimeter. Elite Concrete Cutting LLC removes the concrete core and cleans up the drilling slurry, leaving the site ready for the next phase of construction or installation work.
Core drilling does not include installation of pipes, sleeves, or sealing materials, which are handled by the appropriate trade contractor after the hole is completed. The process can accommodate hole diameters ranging from one inch to over 36 inches, though larger holes may require specialized equipment and longer setup times. Core drilling works well in residential basements, commercial buildings, industrial facilities, and any location where precise circular penetrations are required.
What You Should Know About Core Drilling
Property owners and contractors in Coatesville often ask about hole sizes, drilling angles, and how to handle rebar during the process.
What determines the maximum depth of a core hole?
Drill depth is limited by the length of the bit and the power of the drill motor, but most projects involve holes between 6 and 24 inches deep. Deeper holes require longer bits and may take more time to complete.
How long does it take to drill a four-inch hole through an eight-inch concrete wall?
A hole of that size typically takes 15 to 30 minutes of active drilling time, not including setup and scanning. Thicker walls or heavily reinforced concrete will require more time.
Why is water used during core drilling?
Water cools the diamond bit, washes cuttings from the hole, and prevents dust from becoming airborne. The water is collected in a vacuum system or managed with absorbent materials depending on the site conditions.
When is core drilling preferred over other methods for creating openings?
Core drilling is used when the opening must be circular and precisely sized, such as for pipe penetrations or HVAC ducts. It produces less vibration and noise than impact drilling or jackhammering.
What happens if rebar is encountered during drilling?
The diamond bit cuts through both concrete and steel reinforcement, though rebar will slow the drilling process and may require bit changes if the steel is particularly thick or plentiful.
If you are coordinating with plumbers, electricians, or HVAC installers, schedule core drilling in advance so the holes are ready when the trades arrive on site. Elite Concrete Cutting LLC can work from blueprints or field measurements to ensure each hole is placed correctly and meets the diameter specified for your installation.
